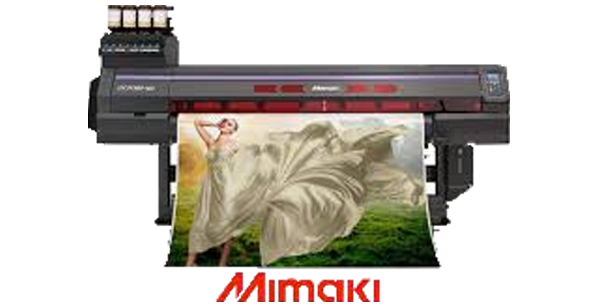

MMimaki UCJV300-160 is print and cut LED-UV curable inkjet printer for leading the future of sign graphics through UV innovation. Applications include large format signage, long-sized sticker, vehicle wrapping films etc.
Immediate Processing and Delivery is Made Available By UV-LED.
Newly Developed GREENGUARD Gold Certified Ecological Inks LUS-170 (Environmentally Friendly UV Ink) and Lus-200 (Flexible UV Ink with The Stretch Ability Up To 200%).
Printing is Possible on a Wide Range of Materials.
ID Cut Can Help to Cut Easily Even for Multiple Types of Data of Small Lot of Each.
Broad Range of Applications.
Four-Layer Print (Day & Night Printing).
Five-Layer Print (Front & Back Printing).
| Printhead | On-Demand Piezo head Ricoh Gen 5 | |
| Print Resolution | 300 dpi, 600 dpi, 900 dpi, 1200 dpi | |
| Max. Print Width | 1,610 mm (63.3 in) | |
| Max. Media Width | 1,620 mm (63.7 in) | |
| Droplet Size | Min. 7pl, Max. 28pl | |
| Ink | Type | LUS-170/LUS-200 |
| Color | LUS-170 (C, M, Y, K, Lc, Lm, W/ C, M, Y, K, Cl, W/ C, M, Y, K); LUS-200 (C, M, Y, K, W/ C, M, Y, K) | |
| Cut Speed | Max. 300mm/s (420mm/s in 45 degrees direction) | |
| Cut Pressure | 10-450gf | |
| RIP | Raster Link 6 | |
| UCJV300-160 (4C 1LAYER) LUS-170LUS-200 | ||||||
| Print Mode | Print Speed (m2/h) | |||||
| Draft | 300x600 4P | Bi/STD | 25.8 | |||
| High Speed | 300x900 6P | Bi/STD | 25.8 | |||
| Standard | 600x600 8P | Bi/Hi | 15.7 | |||
| Quality | 600x1200 16P | Bi/Hi | 8.0 | |||
| High Quality | 1200x1200 16P | Bi/STD | 4.7 | |||
| UCJV300-160 (5C/6C/7C 1LAYER) LUS-170:6C/7CLUS-200:5C | ||||||
| Print Mode | Print Speed (m2/h) | |||||
| Draft | 300x600 8P | Bi/STD | 13.4 | |||
| High Speed | 300x900 12P | Bi/STD | 10.6 | |||
| Standard | 600x600 16P | Bi/Hi | 8 | |||
| Quality | 600x1200 32P | Bi/Hi | 4.0 | |||
| High Quality | 1200x1200 32P | Bi/Hi | 2.4 | |||
| UCJV300-160 (5C/6C/7C MULTILAYERS) LUS-170:6C/7CLUS-200:5C | ||||||
| Print Mode | Print Speed (m2/h) | |||||
| 2 Layer | 3 Layer | 4 Layer | 5 Layer | |||
| High Speed | 300x900 12P | Bi | 5.4 | 3.6 | 2.7 | 2.1 |
| Standard | 600x600 16P | Bi | 4.0 | 2.7 | 2.0 | 1.6 |
| Quality | 600x1200 32P | Bi | 2.0 | 1.3 | 1.00 | .8 |
| High Quality | 1200x1200 32P | Uni | 1.2 | 0.8 | 0.6 | 0.5 |
SJ - True Flat Bed Series delivers high-quality and productive color scheme with comprehensive features. UV LED Curing Flatbed Printers provide high quality direct printing on majority of materials, including wood, glasses, leather, ceramic tiles and much more.
| Printhead | 5x RICOH GH-2220 |
| Max. Print Width | 1000mm x 1600mm |
| Ink | UV LED Curable Inks |
Max. Print Speed
|
|
SJ - True Flat Bed Series delivers high-quality and productive color scheme with comprehensive features. UV LED Curing Flatbed Printers provide high quality direct printing on majority of materials, including wood, glasses, leather, ceramic tiles and much more.
| Printhead | 3-8 RICOH GEN-5 |
| Max. Print Width | 1600mm x 1000mm |
| Ink | UV LED Curable Inks |
Max. Print Speed
|
|
SJ - True Flat Bed Series delivers high-quality and productive color scheme with comprehensive features. UV LED Curing Flatbed Printers provide high quality direct printing on majority of materials, including wood, glasses, leather, ceramic tiles and much more.
| Printhead | 3-8 RICOH GEN-5 |
| Max. Print Width | 2500mm x 1300mm |
| Ink | UV LED Curable Inks |
Max. Print Speed
|
|
SJ - True Flat Bed Series delivers high-quality and productive color scheme with comprehensive features. UV LED Curing Flatbed Printers provide high quality direct printing on majority of materials, including wood, glasses, leather, ceramic tiles and much more.
| Printhead | 3-8 RICOH GEN-5 |
| Max. Print Width | 2000mm x 3000mm |
| Ink | UV LED Curable Inks |
Max. Print Speed
|
|
