MIMAKI

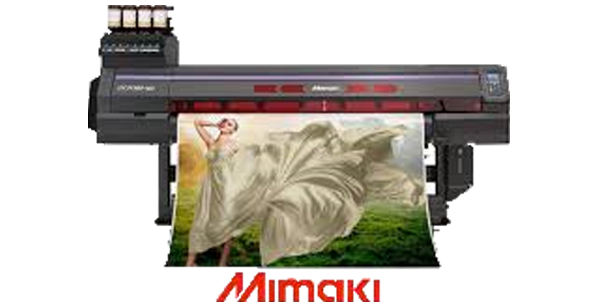

UCJV 300-160

MMimaki UCJV300-160 is print and cut LED-UV curable inkjet printer for leading the future of sign graphics through UV innovation. Applications include large format signage, long-sized sticker, vehicle wrapping films etc.

Features:

Immediate Processing and Delivery is Made Available By UV-LED.
Newly Developed GREENGUARD Gold Certified Ecological Inks LUS-170 (Environmentally Friendly UV Ink) and Lus-200 (Flexible UV Ink with The Stretch Ability Up To 200%).
Printing is Possible on a Wide Range of Materials.
ID Cut Can Help to Cut Easily Even for Multiple Types of Data of Small Lot of Each.
Broad Range of Applications.
Four-Layer Print (Day & Night Printing).
Five-Layer Print (Front & Back Printing).

Specifications:

Printhead		On-Demand Piezo head Ricoh Gen 5
Print Resolution		300 dpi, 600 dpi, 900 dpi, 1200 dpi
Max. Print Width		1,610 mm (63.3 in)
Max. Media Width		1,620 mm (63.7 in)
Droplet Size		Min. 7pl, Max. 28pl
Ink	Type	LUS-170/LUS-200
	Color	LUS-170 (C, M, Y, K, Lc, Lm, W/ C, M, Y, K, Cl, W/ C, M, Y, K); LUS-200 (C, M, Y, K, W/ C, M, Y, K)
Cut Speed		Max. 300mm/s (420mm/s in 45 degrees direction)
Cut Pressure		10-450gf
RIP		Raster Link 6

Print speed:

UCJV300-160 (4C 1LAYER) LUS-170LUS-200
Print Mode			Print Speed (m2/h)
Draft	300x600 4P	Bi/STD	25.8
High Speed	300x900 6P	Bi/STD	25.8
Standard	600x600 8P	Bi/Hi	15.7
Quality	600x1200 16P	Bi/Hi	8.0
High Quality	1200x1200 16P	Bi/STD	4.7
UCJV300-160 (5C/6C/7C 1LAYER) LUS-170:6C/7CLUS-200:5C
Print Mode			Print Speed (m2/h)
Draft	300x600 8P	Bi/STD	13.4
High Speed	300x900 12P	Bi/STD	10.6
Standard	600x600 16P	Bi/Hi	8
Quality	600x1200 32P	Bi/Hi	4.0
High Quality	1200x1200 32P	Bi/Hi	2.4
UCJV300-160 (5C/6C/7C MULTILAYERS) LUS-170:6C/7CLUS-200:5C
Print Mode			Print Speed (m2/h)
Print Mode			2 Layer	3 Layer	4 Layer	5 Layer
High Speed	300x900 12P	Bi	5.4	3.6	2.7	2.1
Standard	600x600 16P	Bi	4.0	2.7	2.0	1.6
Quality	600x1200 32P	Bi	2.0	1.3	1.00	.8
High Quality	1200x1200 32P	Uni	1.2	0.8	0.6	0.5

SMARTJET

SJ 1016

SJ - True Flat Bed Series delivers high-quality and productive color scheme with comprehensive features. UV LED Curing Flatbed Printers provide high quality direct printing on majority of materials, including wood, glasses, leather, ceramic tiles and much more.

Features:

Ricoh Printhead
Vacuum System
Negative Pressure System
High-Quality Linear Guide Rails
White Ink Circulation System
Double Water-cooled UV LED Lamps
Auto Height Detection System
Ink Backflow Protection

Specifications:

Printhead	5x RICOH GH-2220
Max. Print Width	1000mm x 1600mm
Ink	UV LED Curable Inks
Max. Print Speed 6 Pass 8 Pass 12 Pass	69 sf/hr 54 sf/hr 40 sf/hr

SJ 2030

Features:

Ricoh Printhead
Vacuum System
Negative Pressure System
High-Quality Linear Guide Rails
White Ink Circulation System
Double Water-cooled UV LED Lamps
Auto Height Detection System
Ink Backflow Protection

Application

Printhead	3-8 RICOH GEN-5
Max. Print Width	2000mm x 3000mm
Ink	UV LED Curable Inks
Max. Print Speed 6 Pass 8 Pass 12 Pass	151 sf/hr 129 sf/hr 86 sf/hr

SJ 2513

Features:

Ricoh Printhead
Vacuum System
Negative Pressure System
High-Quality Linear Guide Rails
White Ink Circulation System
Double Water-cooled UV LED Lamps
Auto Height Detection System
Ink Backflow Protection

Application

Printhead	3-8 RICOH GEN-5
Max. Print Width	2500mm x 1300mm
Ink	UV LED Curable Inks
Max. Print Speed 6 Pass 8 Pass 12 Pass	161 sf/hr 140 sf/hr 118 sf/hr
